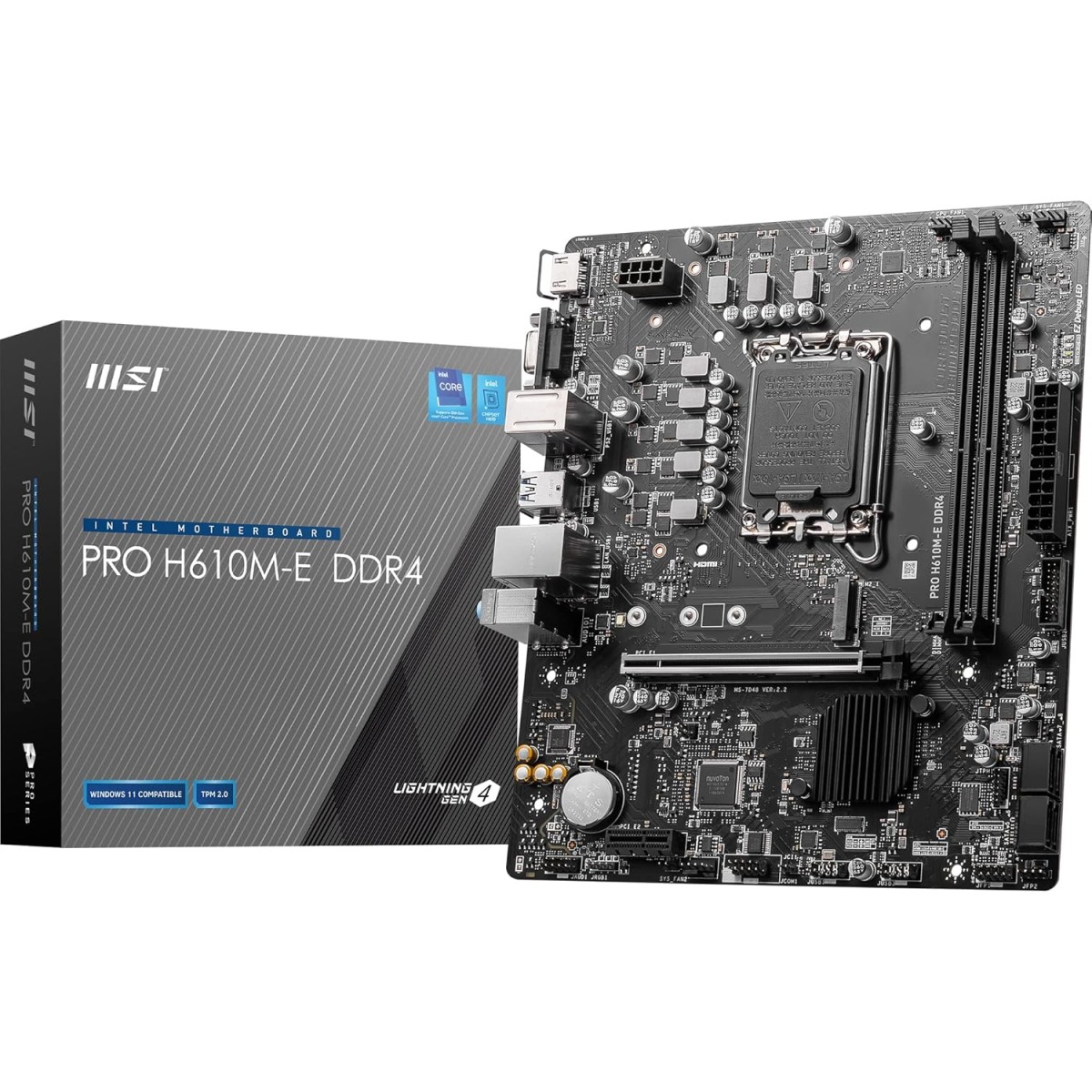

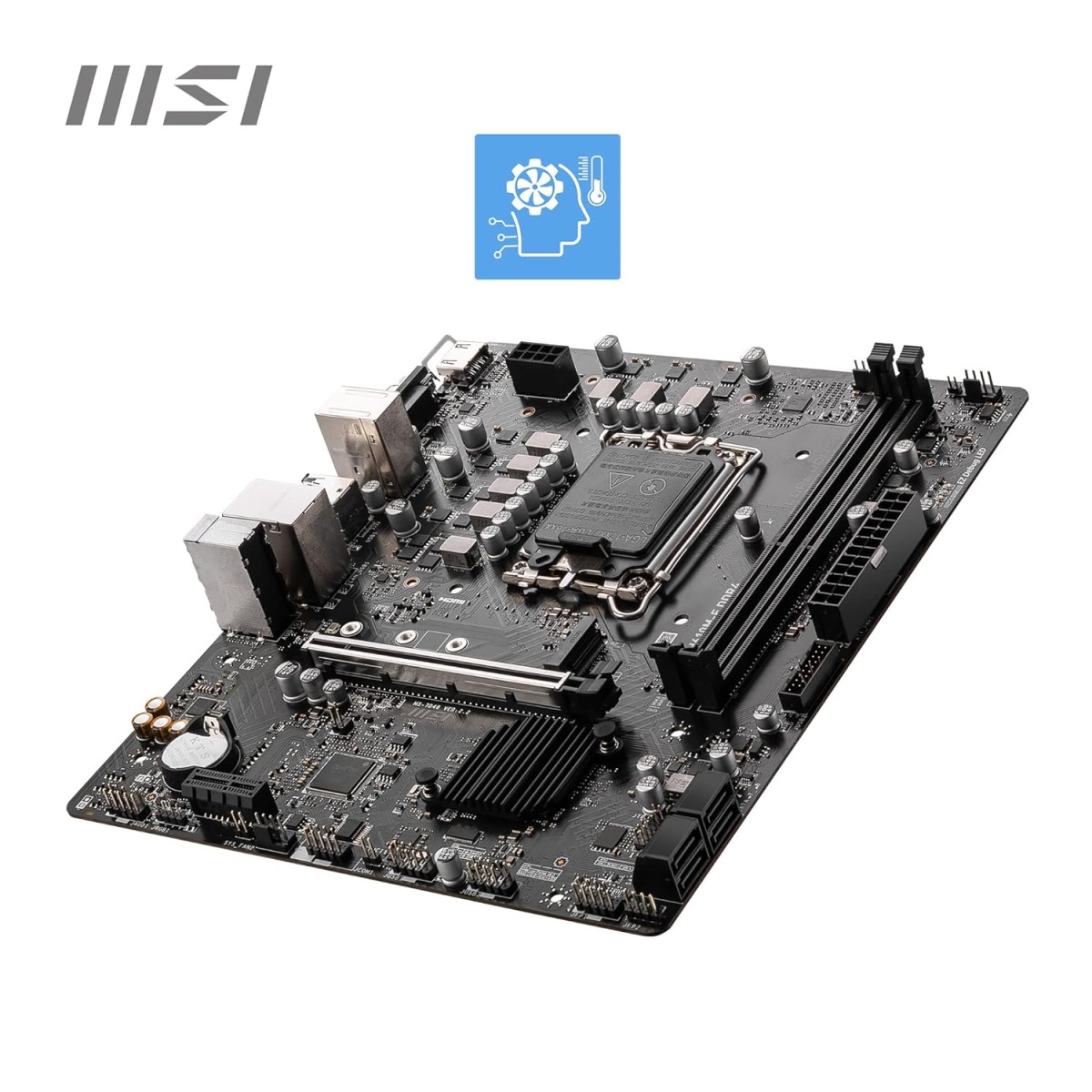

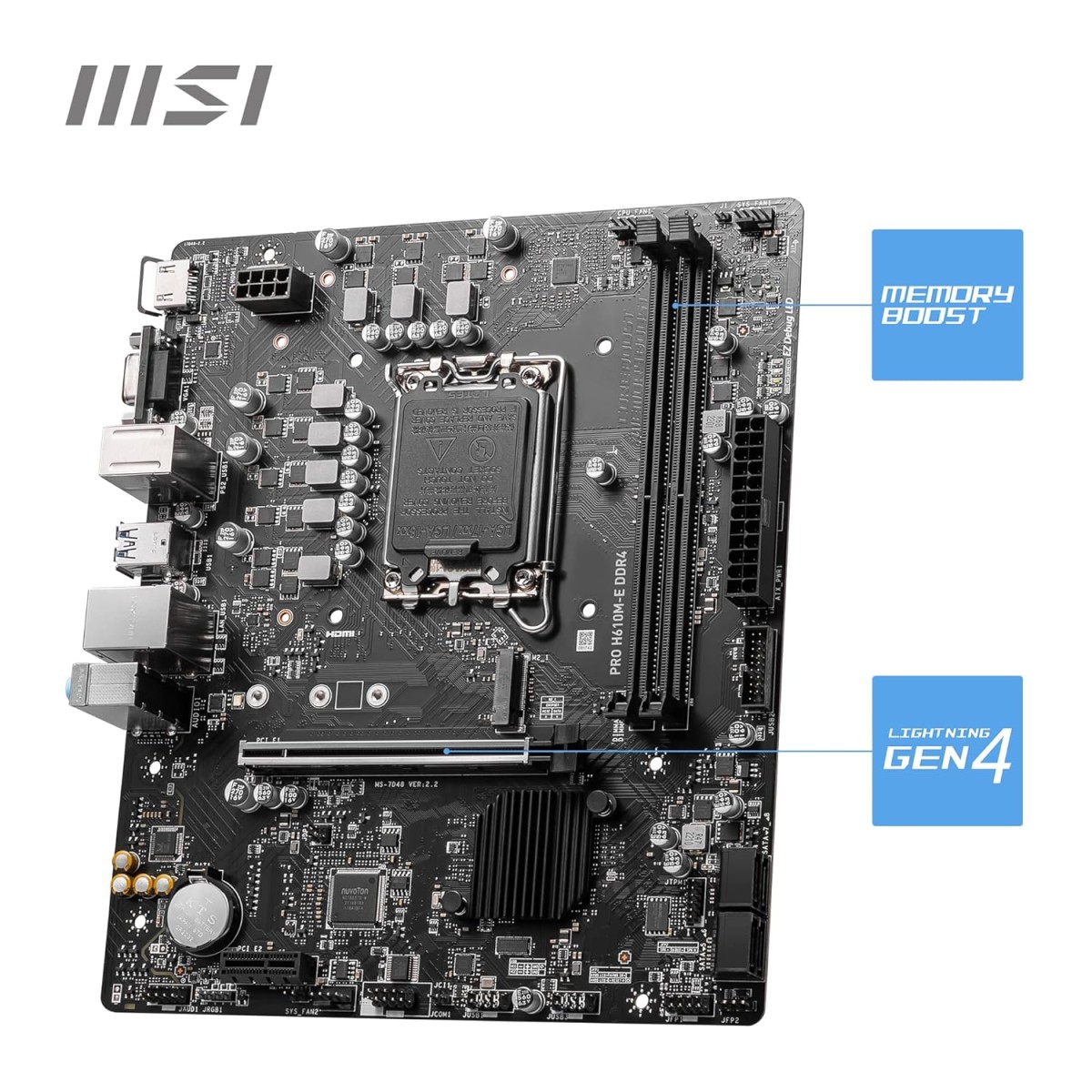

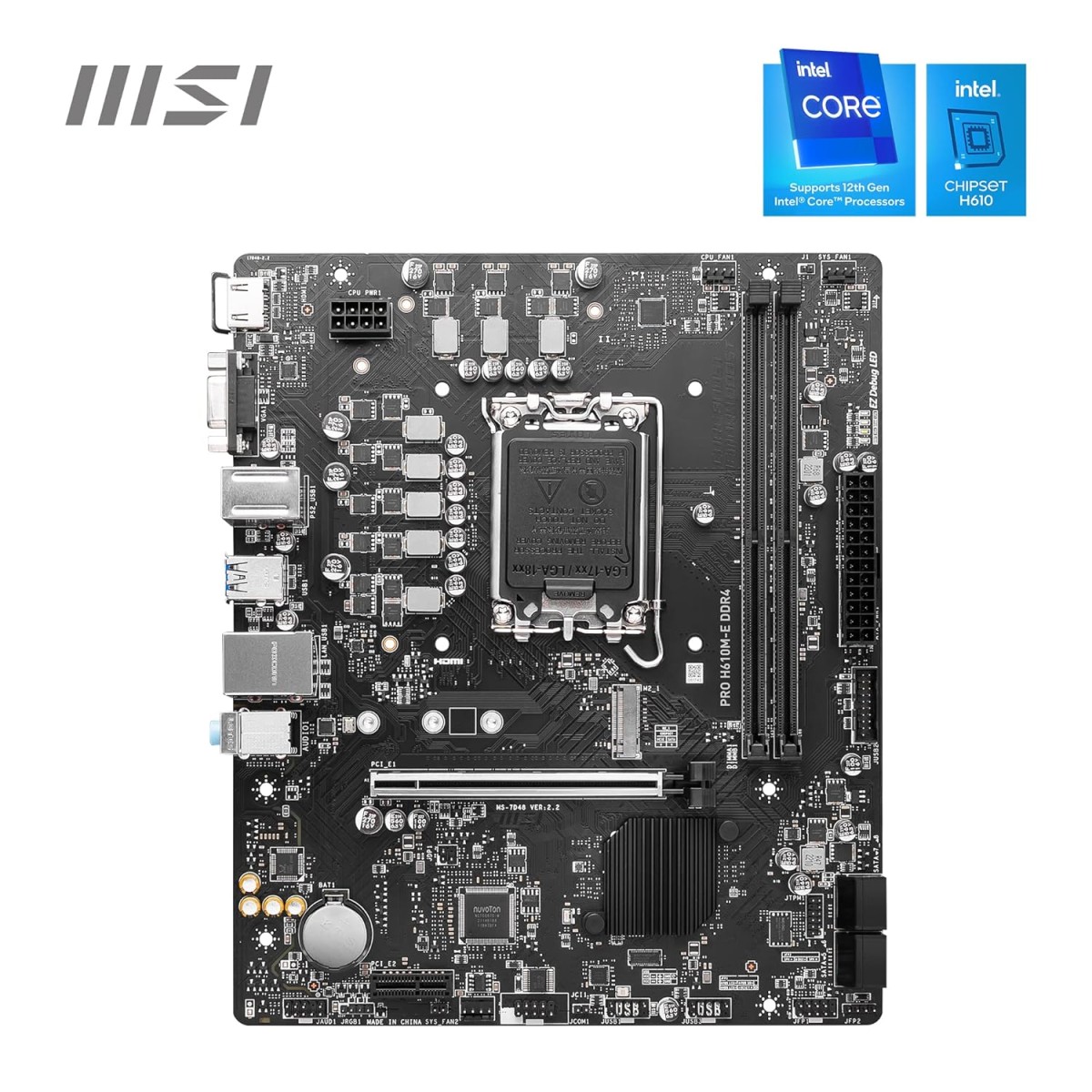

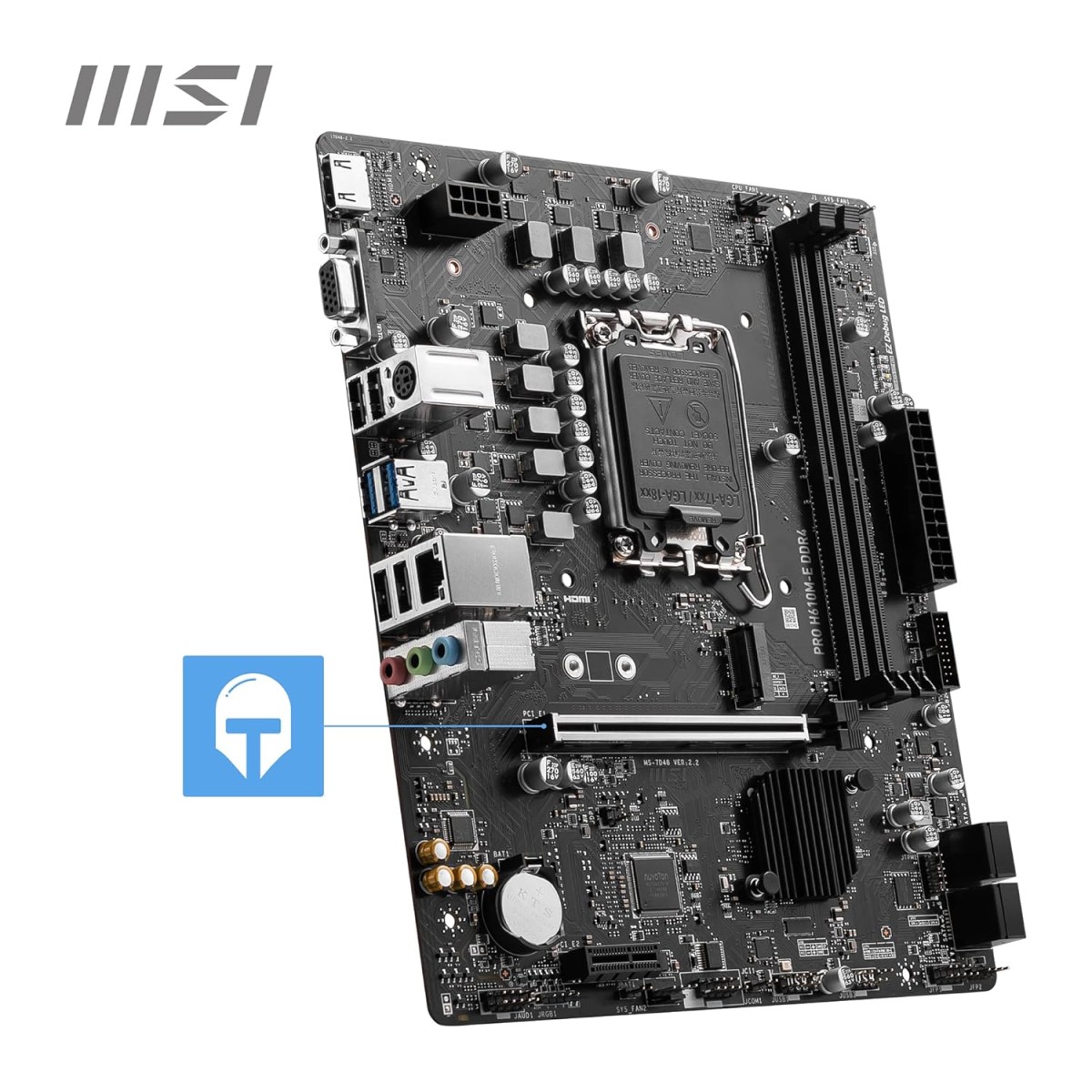

MSI PRO H610M-E DDR4 Motherboard, Micro-ATX - Supports 14th/13th/12th Gen Intel Core Processors, LGA 1700-2 x DIMMs (3200MHz), 1x PCIe 4.0 x16 Slot, 1 x M.2 Gen3, USB 3.2 Gen1, 1G LAN, HDMI 1.4 & VGA










- Stock: Out Of Stock
- Brand: MSI
- Model: PRO H610M-E DDR4
- SKU: B0BKRDV1V3
🎉 Our Customer Benefits 🎉
| 💸 12% Instant Discount | Use code VLE12 at checkout to get 12% Flat Discount |
| 🎁 ₹100 Wallet Credit | Get ₹100 credited to your wallet after successful order completion |
| 💼 GST Credit Available | Add your GST number at checkout to claim tax benefits. Update Now |
| ✅ Warranty Included | All products come with warranty for your peace of mind |
The MSI PRO H610M-E DDR4 is a Micro-ATX motherboard for 14th, 13th and 12th Gen Intel Core processors, with two DDR4 slots supporting speeds up to 3200MHz and a PCIe 4.0 x16 slot. It suits PC builders who need a compact Intel platform with M.2 storage and HDMI and VGA display outputs.
Key Highlights
- Supports 14th, 13th and 12th Gen Intel Core processors
- Two DDR4 DIMM slots, up to 3200MHz
- One PCIe 4.0 x16 expansion slot
- One M.2 Gen3 NVMe slot
- HDMI 1.4 and VGA display outputs
- Gigabit Ethernet and USB 3.2 Gen1
Product Overview
The MSI PRO H610M-E DDR4 is a Micro-ATX motherboard built around the Intel H610 chipset and an LGA 1700-2 CPU socket. It supports 14th, 13th and 12th Gen Intel Core processors. Two DDR4 DIMM slots support memory speeds up to 3200MHz and capacities up to 64GB, while the PCIe 4.0 x16 slot provides an expansion option for a compatible card.
For storage, the board has one M.2 Gen3 NVMe slot and SATA III ports for HDDs or SSDs. Its rear USB connectivity includes USB 3.2 Gen1 and multiple USB 2.0 ports. Integrated multi-channel HD Audio is also included. The Micro-ATX form factor is designed for mATX cases. The box contents are a motherboard, I/O shield, SATA cable(s) and user manual; contents may vary.
Features and Benefits
- Processor support – Works with 14th, 13th and 12th Gen Intel Core processors.
- Memory – Two DDR4 DIMM slots support up to 3200MHz and 64GB.
- Graphics expansion – One PCIe 4.0 x16 slot supports an expansion card.
- M.2 storage – One Gen3 NVMe M.2 slot supports compatible storage.
- SATA storage – SATA III ports connect HDDs or SSDs.
- Display outputs – HDMI 1.4 and VGA provide two monitor connection options.
- Wired networking – One 1G LAN port provides Gigabit Ethernet.
- USB connectivity – Rear USB 3.2 Gen1 and multiple USB 2.0 ports are included.
- Audio – Integrated multi-channel HD Audio is built in.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | MSI |
| Model | PRO H610M-E DDR4 |
| Product Type | Motherboard |
| Form Factor | Micro-ATX |
| Chipset | Intel H610 |
| CPU Socket | LGA 1700-2 |
| CPU Compatibility | 14th, 13th and 12th Gen Intel Core processors |
| Memory | 2 x DDR4 DIMM slots, up to 3200MHz, up to 64GB |
| Expansion Slot | 1 x PCIe 4.0 x16 |
| Storage | 1 x M.2 Gen3 NVMe; SATA III ports for HDD/SSD |
| USB | USB 3.2 Gen1 (rear); multiple USB 2.0 ports |
| Networking | 1 x 1G LAN (Gigabit Ethernet) |
| Video Outputs | HDMI 1.4 and VGA (D-Sub) |
| Audio | Integrated HD Audio (multi-channel) |
| Power and Internal Connectors | 24-pin ATX main, 8-pin CPU power, SATA power connectors, front panel headers |
| CMOS Battery | CR2032 (on-board) |
| Build | PCB with solid capacitors and reinforced slot design |
| Colour | Not stated |
| Country of Origin | China |
Who Should Buy This?
- Intel PC builders – It supports 14th, 13th and 12th Gen Intel Core processors.
- Compact-system builders – The Micro-ATX form factor is designed for mATX cases.
- Memory upgraders – Two DDR4 slots support up to 64GB at speeds up to 3200MHz.
- Storage-focused builders – It has an M.2 Gen3 NVMe slot and SATA III ports.
- Wired-network users – It includes 1G LAN for Gigabit Ethernet.
Compatibility
- 14th, 13th and 12th Gen Intel Core processors using the LGA 1700-2 socket.
- DDR4 memory modules, with two DIMM slots supporting up to 3200MHz and 64GB total.
- mATX cases.
- M.2 Gen3 NVMe storage and SATA III HDDs or SSDs.
- Displays with HDMI 1.4 or VGA connections.
What's in the Box
- Motherboard
- I/O shield
- SATA cable(s)
- User manual
Pros and Limitations
Pros
- Supports three generations of Intel Core processors.
- Two DDR4 slots support up to 64GB.
- Includes both HDMI 1.4 and VGA outputs.
- Provides M.2 NVMe and SATA III storage connections.
- Micro-ATX form factor fits mATX cases.
Limitations
- Memory expansion is limited to two DDR4 DIMM slots.
- There is one M.2 Gen3 NVMe slot.
- Display connections are HDMI 1.4 and VGA.
Frequently Asked Questions
Which processors are compatible with this motherboard?
It supports 14th, 13th and 12th Gen Intel Core processors. The CPU socket is LGA 1700-2.
How much memory can the motherboard support?
It supports up to 64GB of DDR4 memory across two DIMM slots. Supported memory speeds go up to 3200MHz.
Does it have an M.2 slot for NVMe storage?
Yes, it has one M.2 Gen3 NVMe slot. SATA III ports are also available for HDDs or SSDs.
What display connections does it provide?
It has HDMI 1.4 and VGA (D-Sub) outputs. These are the display outputs listed for the board.
Does the motherboard have wired networking?
Yes, it has one 1G LAN port for Gigabit Ethernet. The listed networking connection is wired LAN.
Which case form factor does it use?
It uses the Micro-ATX form factor and is intended for mATX cases. The motherboard's form factor is Micro-ATX.
What comes in the box?
The box contents include the motherboard, I/O shield, SATA cable(s) and user manual. Contents may vary.
How much memory and storage does the MSI PRO H610M-E have?
It has 2 x DDR4 DIMM slots, up to 3200MHz, up to 64GB of RAM and 1 x M.2 Gen3 NVMe; SATA III ports for HDD/SSD of storage. Plan for apps and updates that use part of the storage.
Warranty
1 year manufacturer warranty
| Country and Manufacturer | |
| Country of Origin | China |
