  • Stock: In Stock
  • Brand: MSI
  • Model: 7D48-019R
  • SKU: B0CC9G49JQ
₹4,599.00
₹10,350.00

🎉 Our Customer Benefits 🎉

💸 12% Instant DiscountUse code VLE12 at checkout to get 12% Flat Discount
🎁 ₹100 Wallet CreditGet ₹100 credited to your wallet after successful order completion
💼 GST Credit AvailableAdd your GST number at checkout to claim tax benefits. Update Now
✅ Warranty IncludedAll products come with warranty for your peace of mind

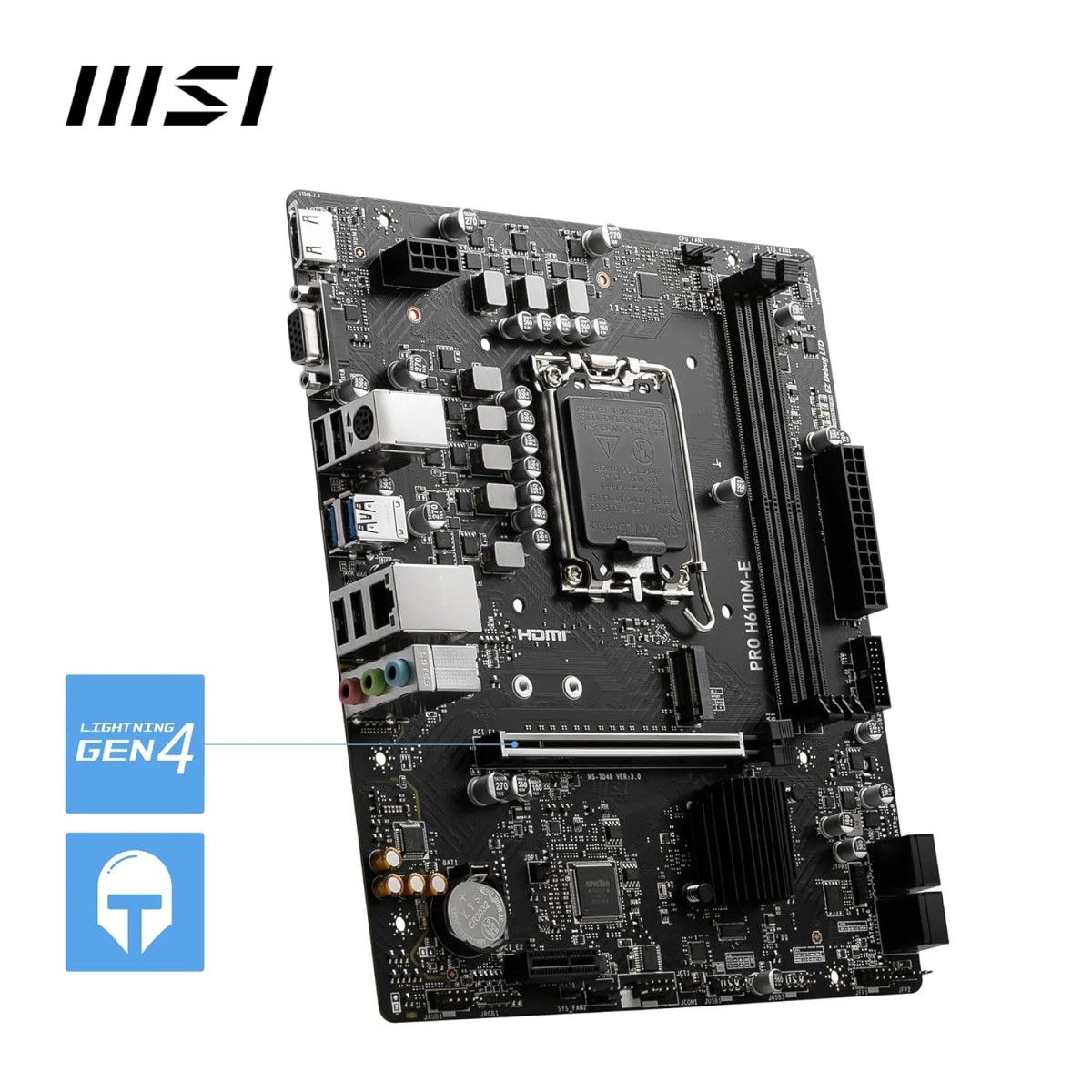

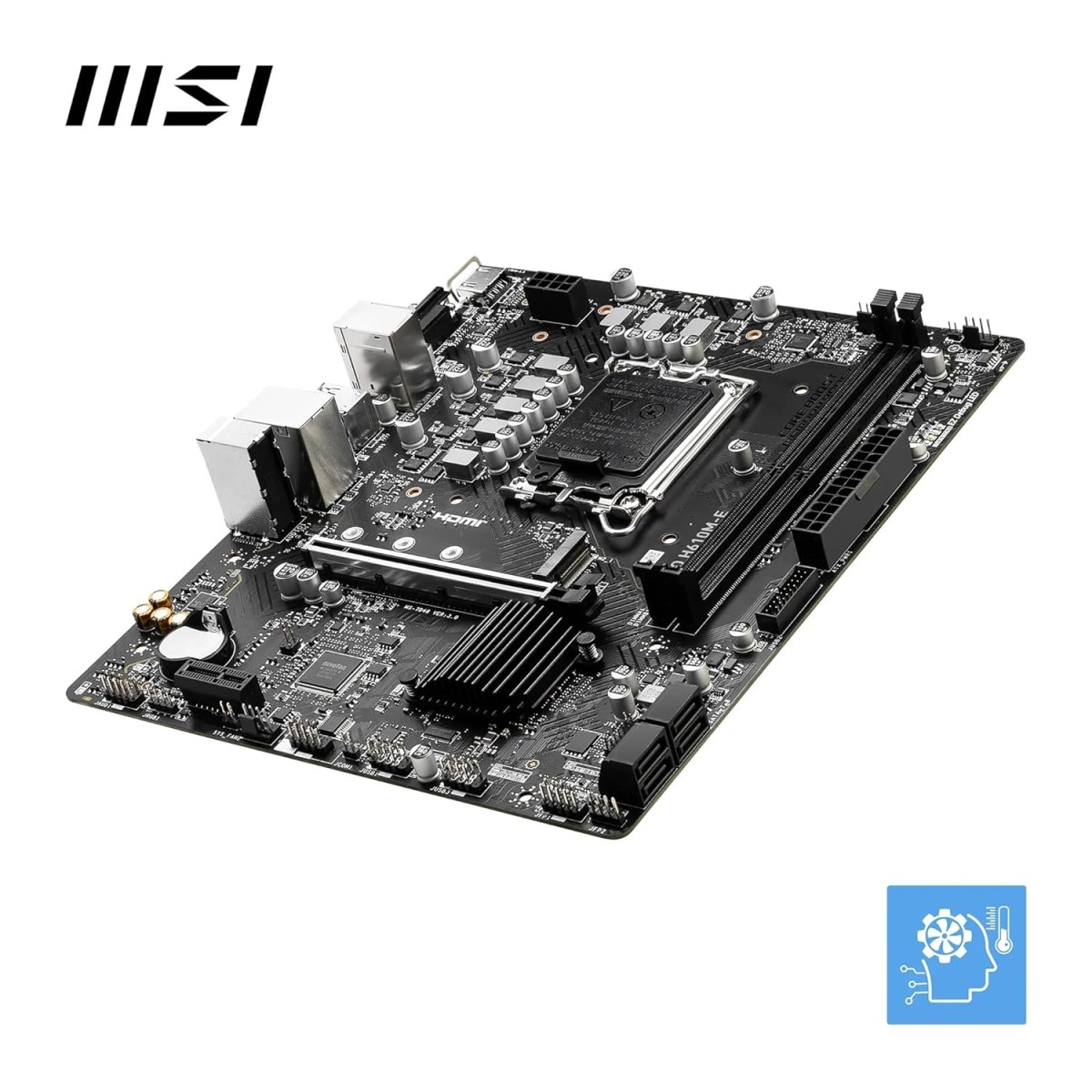

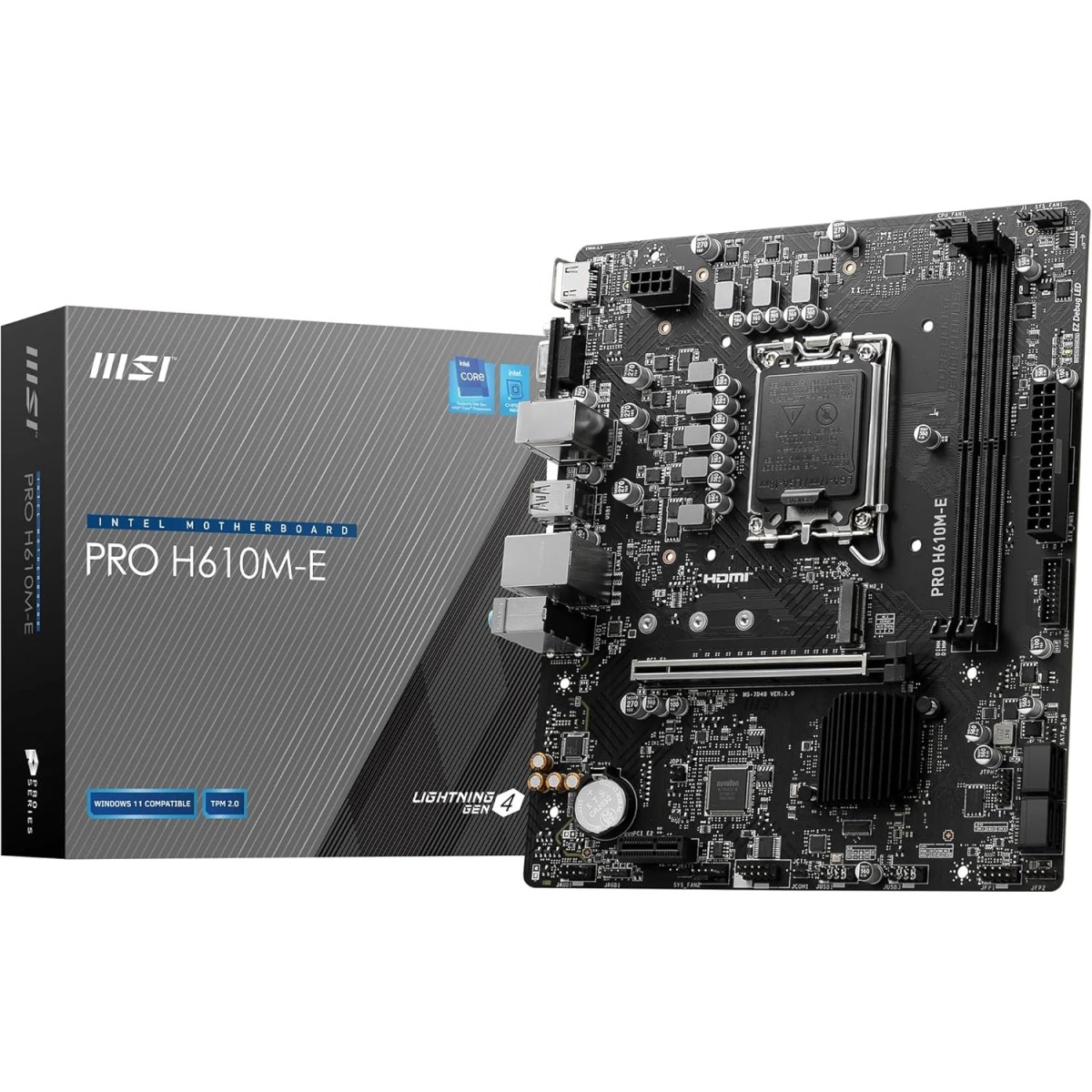

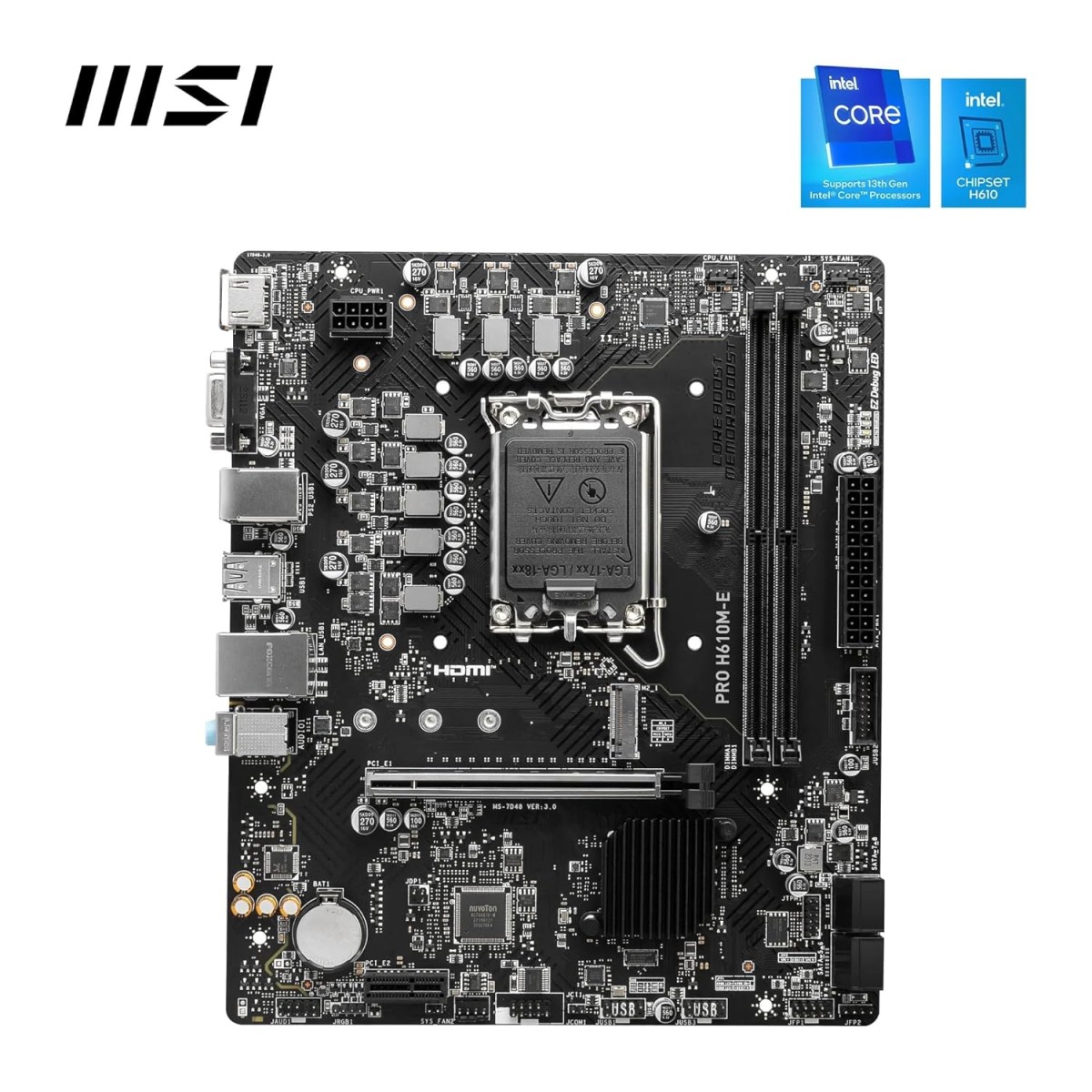

The MSI PRO H610M-E is a Micro-ATX motherboard with an LGA 1700 socket for 12th, 13th and 14th Gen Intel Core processors. It supports DDR5 memory up to 5600 MHz and has a PCIe 4.0 x16 slot and an M.2 PCIe 3.0 x4 slot. Its compact form factor suits desktop builds for office work, everyday use and entry-level gaming.

Key Highlights

  • LGA 1700 socket for 12th–14th Gen Intel Core
  • Two DDR5 slots, up to 64 GB
  • Memory Boost up to 5600 MHz
  • PCIe 4.0 x16 and M.2 PCIe 3.0 x4
  • Four SATA III ports at 6 Gb/s
  • HDMI, VGA and Gigabit Ethernet

Product Overview

The MSI PRO H610M-E is a black Micro-ATX motherboard built around the Intel H610 chipset. Its LGA 1700 socket supports 12th, 13th and 14th Gen Intel Core processors. Two DDR5 DIMM slots support up to 64 GB of memory, with Memory Boost up to 5600 MHz depending on the memory kit. These specifications make it a fit for compact desktop systems used for productivity, home-office tasks and entry-level gaming.

For expansion, the board provides one PCIe 4.0 x16 slot, at least one PCIe x1 slot, one M.2 PCIe 3.0 x4 slot and four SATA III ports rated at 6 Gb/s. HDMI and VGA display outputs are available when used with a processor that has integrated graphics. Gigabit Ethernet, Realtek HD Audio, USB 3.x and USB 2.0 ports support everyday connectivity. The box contents include the motherboard, I/O shield, SATA cables and user manual.

Features and Benefits

  • LGA 1700 socket – Supports 12th, 13th and 14th Gen Intel Core processors.
  • DDR5 memory – Two DIMM slots support up to 64 GB.
  • Memory Boost – Supports speeds up to 5600 MHz depending on the memory kit.
  • PCIe 4.0 x16 – Provides an expansion slot for a graphics card.
  • M.2 PCIe 3.0 x4 – Offers an M.2 slot for storage.
  • SATA III storage – Four ports support connections at 6 Gb/s.
  • Display outputs – HDMI and VGA are available through a compatible CPU's integrated graphics.
  • Network and audio – Includes 1 Gbps Gigabit Ethernet and Realtek HD Audio.

Technical Specifications

SpecificationDetails
BrandMSI
ModelMSI PRO H610M-E; 7D48-019R
Product TypeMotherboard
Form FactorMicro-ATX
ChipsetIntel H610
CPU SocketLGA 1700
Processor Compatibility12th, 13th and 14th Gen Intel Core processors
Memory2 x DDR5 DIMM slots; up to 64 GB; Memory Boost up to 5600 MHz depending on kit
PCIe Slots1 x PCIe 4.0 x16; 1+ x PCIe x1
Storage1 x M.2 PCIe 3.0 x4 slot; 4 x SATA III ports (6 Gb/s)
Integrated GraphicsSupported via CPU integrated graphics
Display OutputsHDMI, VGA
NetworkingGigabit Ethernet (1 Gbps) LAN
AudioRealtek HD Audio; multi-channel support

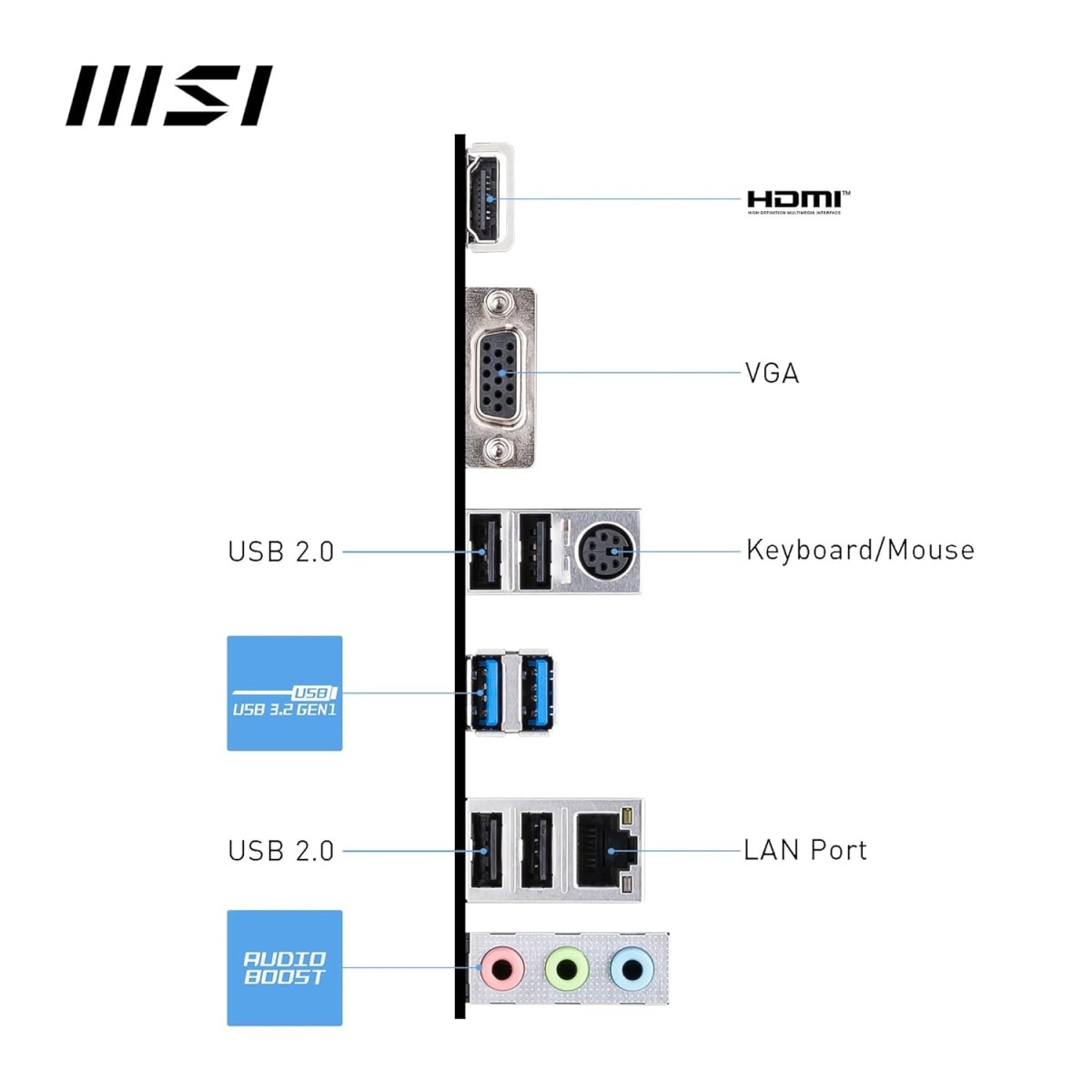

Rear I/OUSB 3.x, USB 2.0, HDMI, VGA, LAN and audio jacks
CMOS BatteryCR2032
BuildPCB with thermal design elements and reinforced slots
DimensionsApprox. 244 x 226 mm
ColourBlack PCB with neutral heatsink accents
Country of OriginChina

Who Should Buy This?

  • Compact PC builders – The Micro-ATX form factor suits small desktop builds.
  • Intel CPU upgraders – The LGA 1700 socket supports 12th, 13th and 14th Gen Intel Core processors.
  • Home-office users – The board combines Gigabit Ethernet, USB ports and display outputs.
  • Entry-level gamers – The PCIe 4.0 x16 slot provides a graphics-card expansion option.
  • Storage expanders – One M.2 slot and four SATA III ports provide storage connections.

Compatibility

  • 12th, 13th and 14th Gen Intel Core processors using the LGA 1700 socket.
  • DDR5 memory, with up to 64 GB across two DIMM slots and Memory Boost up to 5600 MHz depending on the kit.
  • Display connection through HDMI or VGA when the installed processor has integrated graphics.
  • Storage devices using the M.2 PCIe 3.0 x4 slot or four SATA III ports.

What's in the Box

  • Motherboard
  • I/O shield
  • SATA cables
  • User manual

Pros and Limitations

Pros

  • Supports three generations of Intel Core processors on LGA 1700.
  • Offers two DDR5 slots and supports up to 64 GB.
  • Includes both an M.2 slot and four SATA III ports.
  • Provides HDMI and VGA outputs when paired with a CPU with integrated graphics.

Limitations

  • The board has two DDR5 DIMM slots.
  • HDMI and VGA display output depends on the installed processor's integrated graphics.
  • Memory Boost speed depends on the memory kit.

Frequently Asked Questions

Which processors work with the MSI PRO H610M-E?

It supports 12th, 13th and 14th Gen Intel Core processors with an LGA 1700 socket. The board uses the Intel H610 chipset.

What type and amount of memory does this motherboard support?

It has two DDR5 DIMM slots and supports up to 64 GB. Memory Boost reaches up to 5600 MHz depending on the memory kit.

Does the board have a graphics card slot?

Yes, it has one PCIe 4.0 x16 slot. It also has at least one PCIe x1 expansion slot.

What storage connections are available?

The board has one M.2 PCIe 3.0 x4 slot and four SATA III ports rated at 6 Gb/s. These provide M.2 and SATA storage connections.

Can I connect a monitor using HDMI or VGA?

Yes, the board has HDMI and VGA outputs. Display output through these ports requires a processor with integrated graphics.

Does this motherboard include wired networking?

Yes, it includes Gigabit Ethernet LAN rated at 1 Gbps. Rear I/O also includes USB ports and audio jacks.

What is included in the box?

The box includes the motherboard, I/O shield, SATA cables and user manual. A driver CD is not included in this list because its inclusion is conditional.

How much memory and storage does the MSI PRO H610M-E have?

It has 2 x DDR5 DIMM slots; up to 64 GB; Memory Boost up to 5600 MHz depending on kit of RAM and 1 x M.2 PCIe 3.0 x4 slot; 4 x SATA III ports (6 Gb/s) of storage. Plan for apps and updates that use part of the storage.

Warranty

1 year manufacturer warranty
